Bf 109 K-4 Aircraft Manual Part 1: Fuselage Part 2: Landing Gear Part 3: Tail Unit Part 4: Control Unit Part 5: Wing (As of October 1944) November 1944 Edition

Bf 109 K-4 Works Manual – Ultra-Rare 284-Page PDF! Digital Download, NO HARD COPY

November 1944 Edition (Oct '44 data) – One of ONLY 47 Surviving Copies Worldwide! Declassified Luftwaffe original, digitally restored from Berlin archives. Impossible to find elsewhere – not on eBay, not in museums!Complete 5-Part Breakdown + Aircraft Manual:

Part

Detailed Blueprints & Specs

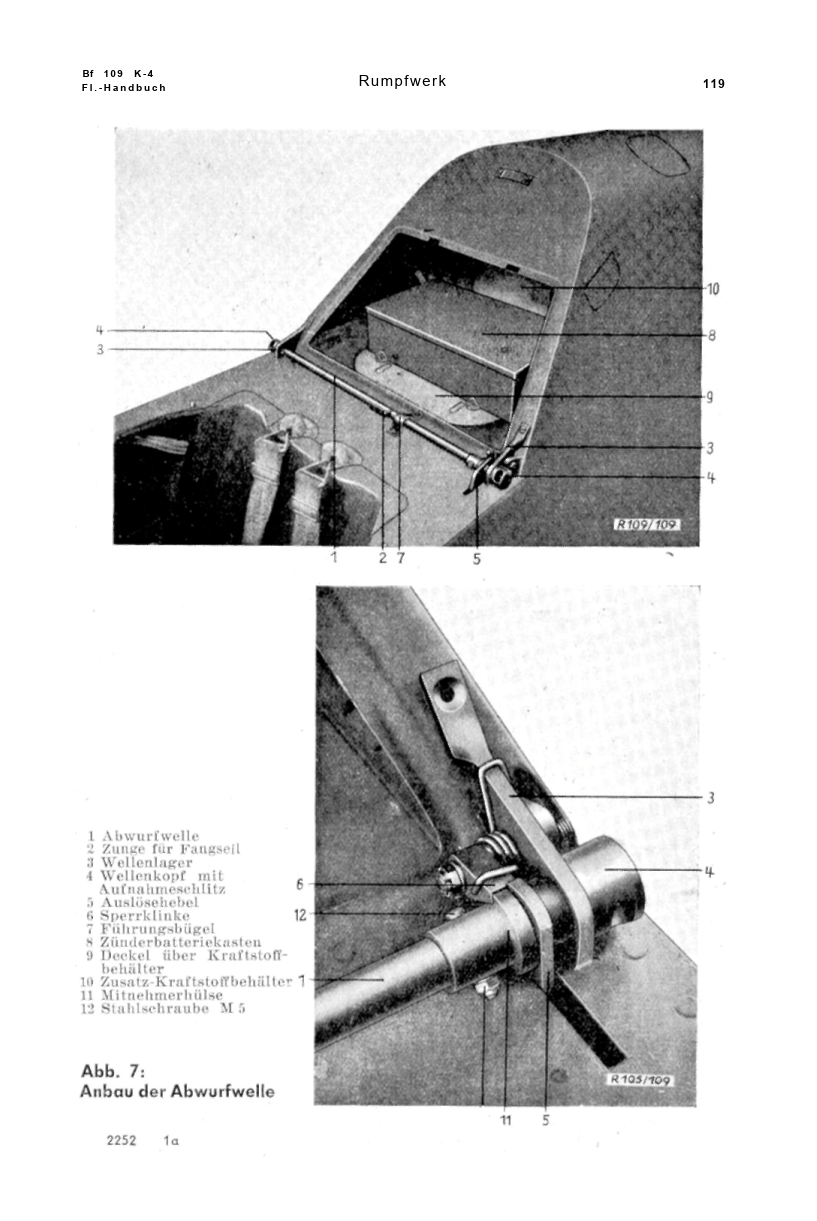

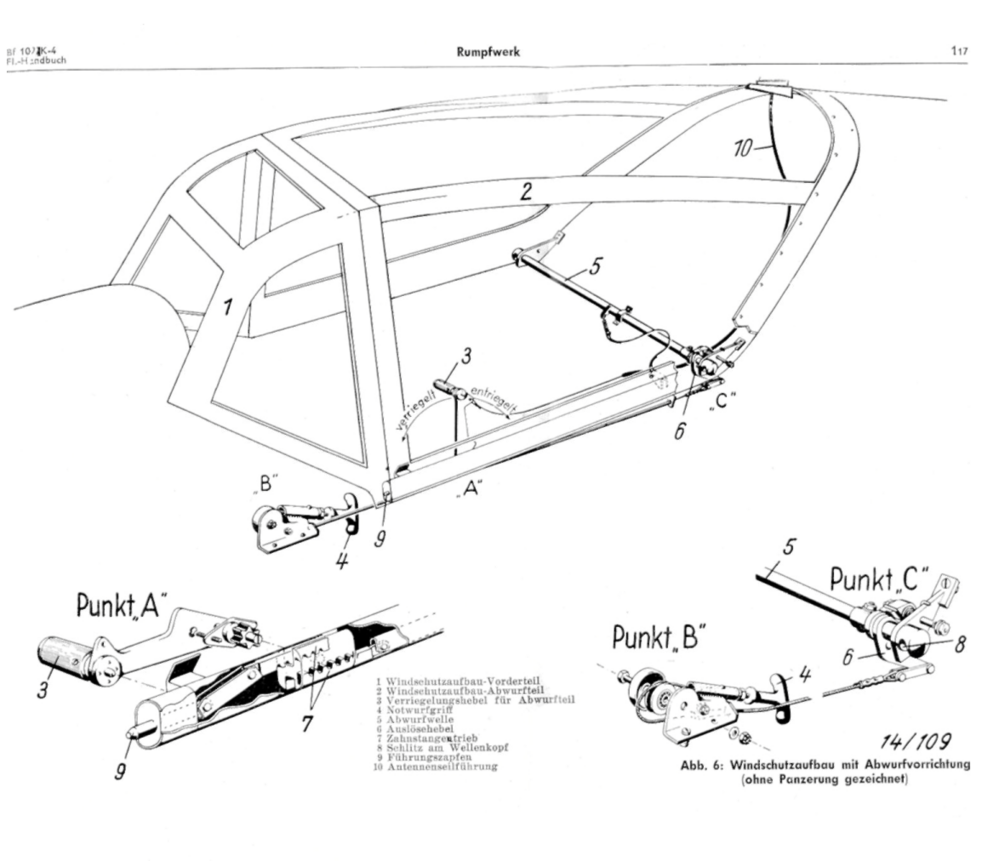

1: Fuselage

Assembly, riveting, tolerances

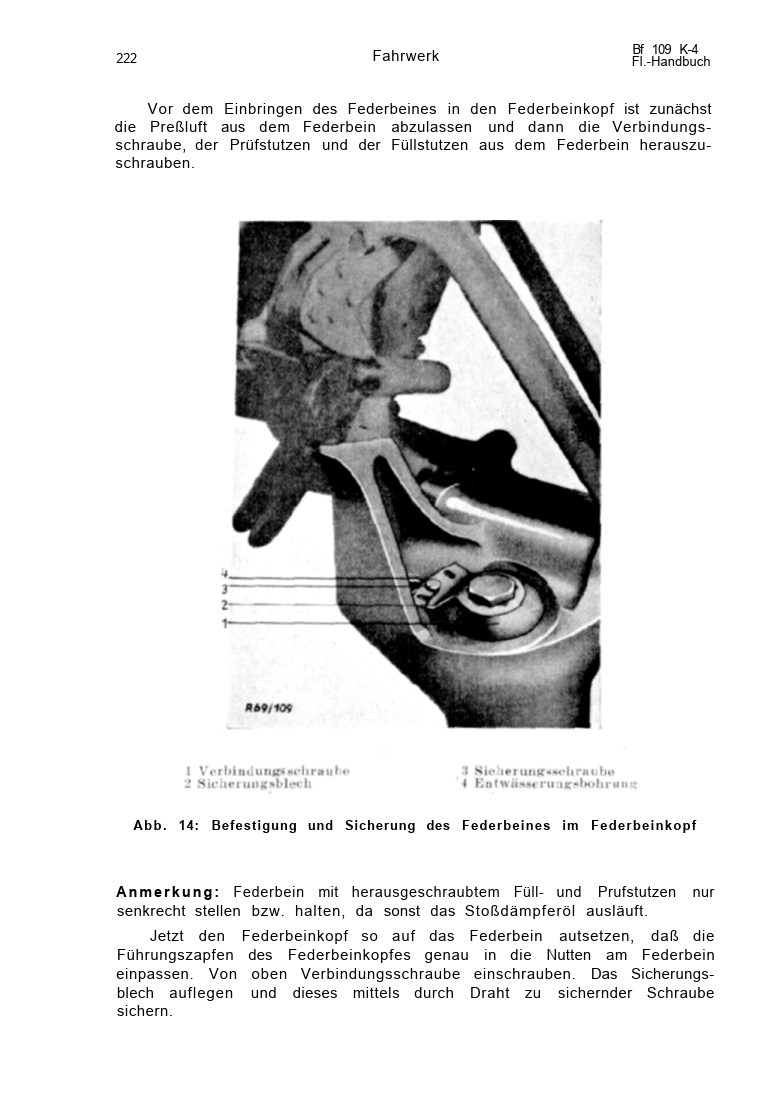

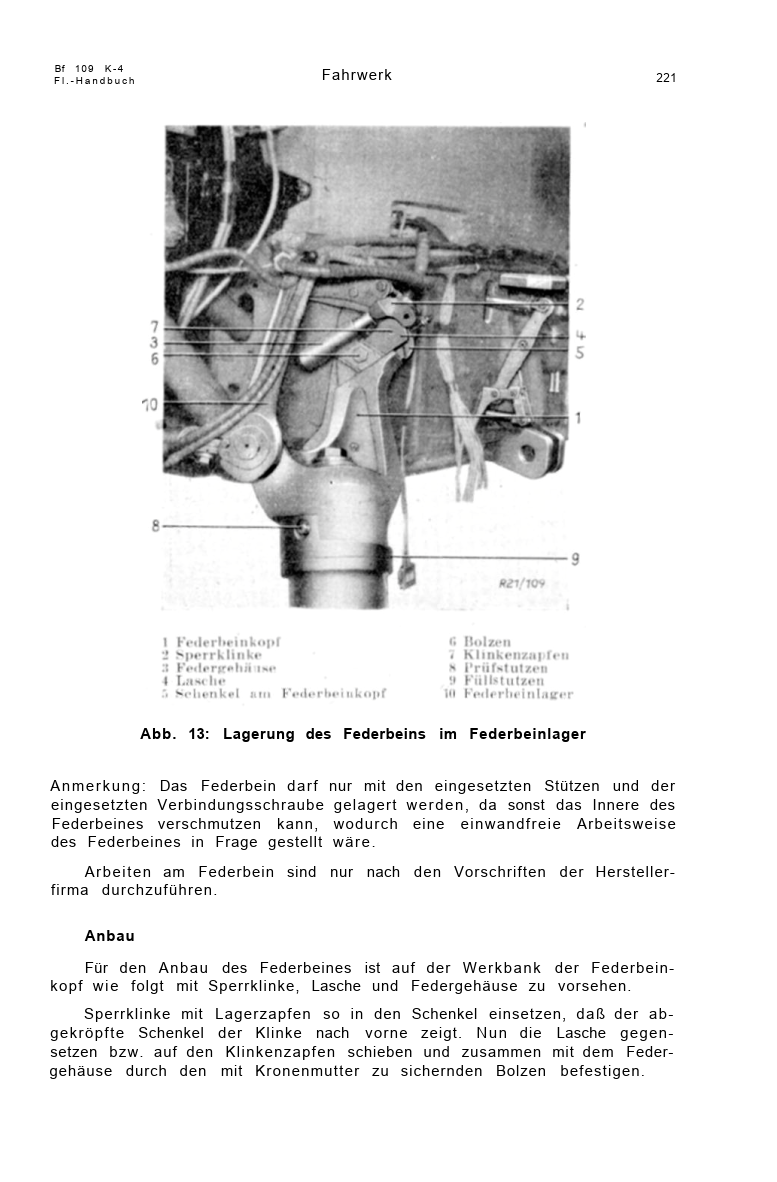

2: Landing Gear

Hydraulics, retraction charts

3: Tail Unit

Rudder/elevator alignment

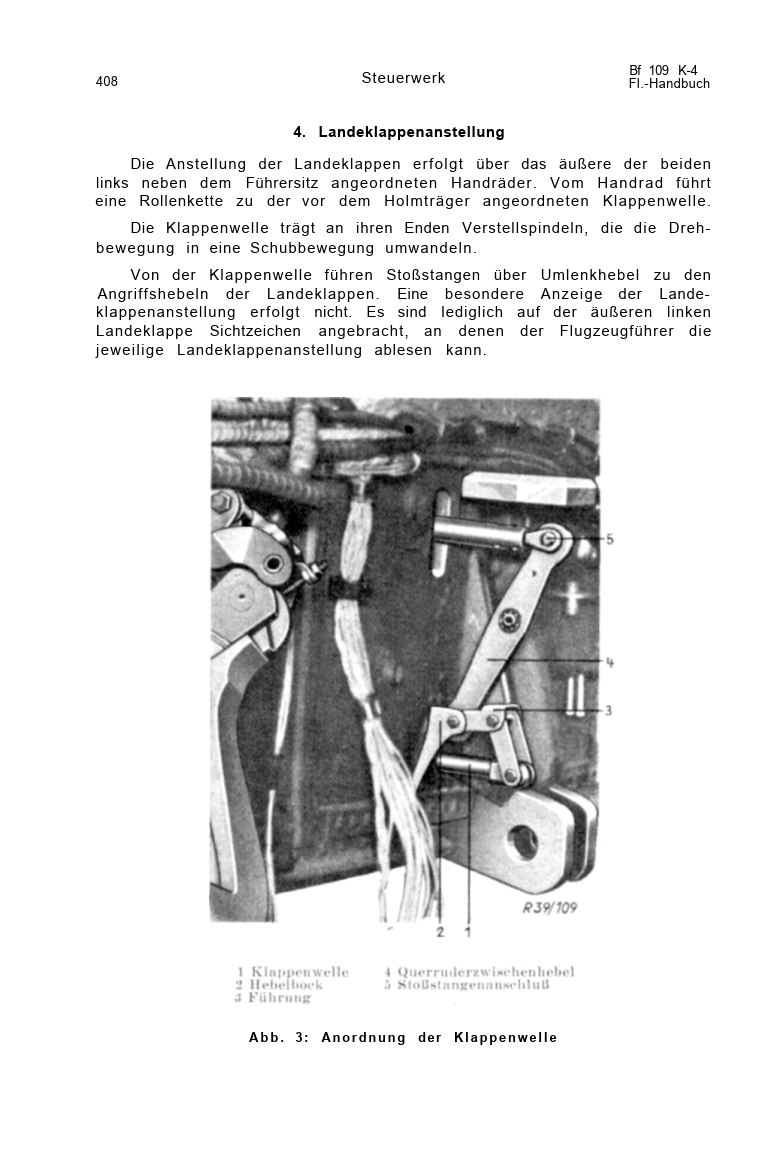

4: Control Unit

Cables, rigging tables

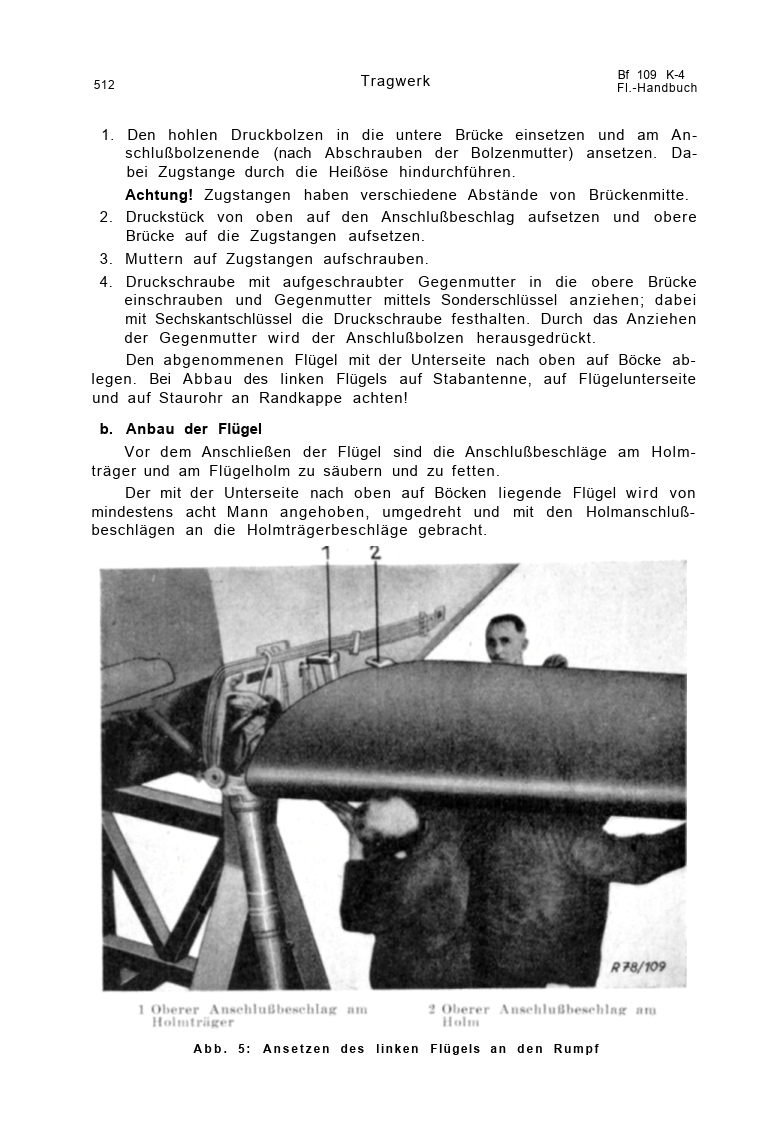

5: Wing

Spars, flaps, 30mm cannon mounts
